Tiger Box and Tiger Serve
Integrated Appliances
Find flexible, high-performance storage to match your needs. Optimize your storage and gain failover with a state-of-the-art, ready-to-deploy shared storage manager.
Configure a Complete Workflow System
Tiger Store
Each Tiger Technology appliance comes with Tiger Store, our MDC software enabling cross-platform file system sharing for high-performance workflows.
Learn more
Add Tiger Spaces
Gain project and user management through the creation of virtual workspaces within your shared storage. Spaces Media Asset Management module available as an add-on.
Learn more
Add Tiger Bridge
Run backup & archive to disk, tape or the cloud. Enable multi-site sync, quick disaster recovery, data protection and cut down on storage costs significantly.
Learn more
Use Tiger Appliances with Mac, Windows & Linux Clients
Select Your Appliance
Flexible Server
Tiger Serve | 1U
- Up to three PCIe extension slots.
- Up to 12x connectivity ports: 8/16 Hb Fibre Channel and/or 1/10/25/40 Gb E, and/or 16Gb SAS ports.
- A fast and flexible server that comes with the pre-installed Tiger Store software and any of our other software modules.
High-Availability

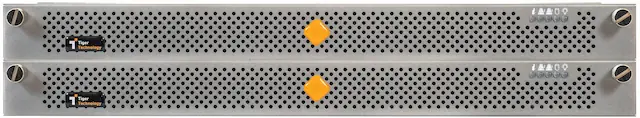

2 x Tiger Serve | 1U
- Two independent server nodes connected in an active-passive HA cluster.
- Up to three PCIe extension slots per server.
- Up to 12x connectivity ports per server.
- A fast and flexible server with pre-installed Tiger Store + HA along with any of our other workflow software modules.
High-Performance Storage Server

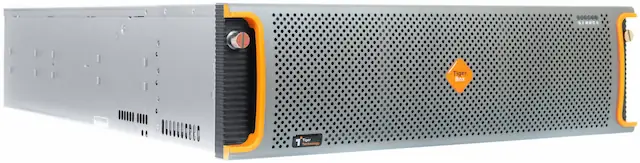

Tiger Box | 3U16
- 16 x 3.5"/2.5" drive bays.
- Up to 7 PCIe extension slots.
- 8/16 Gb FC and/or 1/10/40 GbE for clients and 16Gb SAS ports for tape libraries.
- Add up to 4 Tiger Exp | 3U16 or Tiger Exp | 4U24 expansion chassis.
High-Performance Storage Server

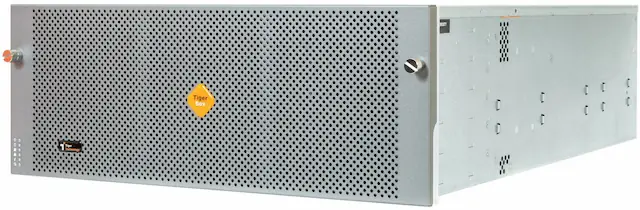

Tiger Box | 4U24
- 24 x 3.5"/2.5" drive bays.
- Up to 7 PCIe extension slots.
- 8/16 Gb FC and/or 1/10/40 GbE for clients and 16Gb SAS ports for tape libraries.
- Add up to 4 Tiger Exp | 3U16 or Tiger Exp | 4U24 expansion chassis.
High-Performance Storage Server

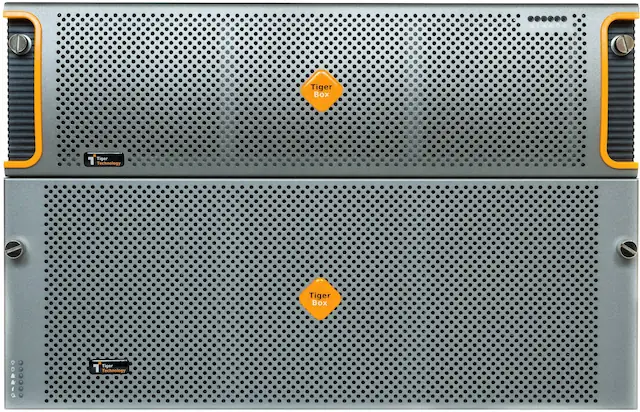

Tiger Exp | 3U16 or 4U24
Tiger Exp | 3U16
- 16 x 3.5"/2.5" drive bays.
- SAS connection.
Tiger Exp | 4U24
- 24 x 3.5"/2.5" drive bays.
- SAS connection.
Performance
| Codec | Bitrate (Mbps) | Bitrate (MB/sec) | Storage (Hours/TB) | Stream Count (1): HDD Box|1U4 (500-700 MB/sec) | HDD Box|3U16 (1.5-2 GB/sec) | HDD Box|1U4 + Exp|3U16 (1.5-2 GB/sec) | HDD Box|3U16 + Exp|3U16 (2.5-3 GB/sec) | SSD Box|1U8 and Box|3U16 (2.5-3 GB/sec) |
|---|---|---|---|---|---|---|---|---|
| DV25 | 25 | 3 | 92 hrs | 50 | 60 | 120 | 120 | 800 |
| DVCPRO50 | 50 | 6 | 46 hrs | 35 | 50 | 100 | 100 | 450 |
| ProRes LT HD | 110 | 13 | 21 hrs | 20 | 45 | 90 | 90 | 220 |
| ProRes HQ HD, Avid DNxHD | 220 | 28 | 9 hrs | 12 | 35 | 70 | 70 | 105 |
| Uncompress SD | 345 | 43 | 6 hrs 30 min | 8 | 25 | 50 | 50 | 65 |
| RED 5K 8:1 | 634 | 79 | 3 hrs 30 min | 4 | 15 | 30 | 30 | 35 |
| 3.2K ProRes 3200 x 1800 4444XQ | 800-1,000 | 100-125 | 2 hrs 50 min | 3 | 12 | 24 | 24 | 27 |
| 3.2K ProRes 3200 x 1800 | 1,100 | 135 | 1 hr 60 min | 2 | 9 | 18 | 18 | 20 |
| HD 10-bit 4:2:2 uncompressed | 1,200 | 150 | 1 hr 50 min | 2 | 9 | 18 | 18 | 20 |
| 4K ProRes 422HQ 4096 x 3112 | 1,312 | 164 | 1 hr 45 min | 2 | 8 | 16 | 16 | 18 |
| 4K UHD 3840 x 2160 ProRes 4444XQ | 1,650 | 206 | 1 hr 24 min | 2 | 6 | 14 | 14 | 16 |
| HD 16-bit 4:2:2 uncompressed | 1,923 | 240 | 1 hr 9 min | 1 | 5 | 10 | 10 | 12 |
| 8K F65RAW-SQ | 2,520 | 315 | 52 min | 1 | 4 | 6 | 8 | 9 |
| 2K 10 bit uncompress | 2,945 | 368 | 45 min | 1 | 3 | 6 | 8 | 8 |
| 4K 12 bit uncompress | 9,569 | 1,196 | 13 min | 0 | 1 | 1 | 2 | 2 |
| 8K 8 bit uncompress | 25,520 | 3,190 | 5 min | 0 | 0 | 0 | 1 | 1 |
Note: When using Tiger Serve|1U and Tiger Serve|2U, SAN performance is only bond to your storage infrastructure. We have field installs with sustained throughput to SAN clients exceeding 20GB/sec (160Gbps) and performing multiple streams of 4K DPX color grading. For LAN clients, performance would be the same as Box|1U8 or Box|3U16 with SSD.
I/O Options
| I/O Options (2) | Client Protocol(s) | Storage Protocol(s) | Performance: Mac/Linux clients (3) | Performance: PC client (3) |
|---|---|---|---|---|
| 4x 1GbE | SMB/NFS/Tiger Block-Level | N/A | 880 Mbps (110 MB/sec) | 880 Mbps (110 MB/sec) |
| 1x 10GbE optical SFP+ | SMB/NFS/Tiger Block-Level | iSCSI (option) (4) | 6,400 Mbps (800 MB/sec) | 8,000 Mbps (1,000 MB/sec) |
| 2x 10GbE copper | SMB/NFS/Tiger Block-Level | iSCSI (option) (4) | 6,400 Mbps (800 MB/sec) | 8,000 Mbps (1,000 MB/sec) |
| 4x 10GbE optical SFP+ | SMB/NFS/Tiger Block-Level | iSCSI (option) (4) | 6,400 Mbps (800 MB/sec) | 8,000 Mbps (1,000 MB/sec) |
| 2x 40GbE optical QSFP | SMB/NFS/Tiger Block-Level | iSCSI (option) (4) | 12,000 Mbps (1500MB/sec) | 14,400 Mbps (1800MB/sec) |
| 4x SAS | N/A | SAS | 36,000 Mbps (4500MB/sec) | 36,000 Mbps (4500MB/sec) |
| 1x 8GbFC | Tiger Block-Level (option) (5) | Fibre Channel | 6,000 Mbps (750 MB/sec) | 5,200 Mbps (650 MB/sec) |
| 4x 8GbFC | Tiger Block-Level (option) (5) | Fibre Channel | 6,000 Mbps (750 MB/sec) | 5,200 Mbps (650 MB/sec) |
| 1x 16GbFC | Tiger Block-Level (option) (5) | Fibre Channel | 12,000 Mbps (1,500 MB/sec) | 10,400 Mbps (1,300 MB/sec) |
| 4x 16GbFC | Tiger Block-Level (option) (5) | Fibre Channel | 12,000 Mbps (1,500 MB/sec) | 10,400 Mbps (1,300 MB/sec) |
| 2x Accusys DAS | N/A | PCIe QSFP | 15,000 Mbps (1,875 MB/sec) | 15,000 Mbps (1,875 MB/sec) |
| 2x Accusys SAN | N/A | PCIe QSFP | 15,000 Mbps (1,875 MB/sec) | 15,000 Mbps (1,875 MB/sec) |
Specifications
| System (6) | Form Factor | CPU | Motherboard | Memory | System drive | RAID controller | Available PCIe Slots | Drive bays |
|---|---|---|---|---|---|---|---|---|
| Tiger Box|1U4 | 1U | Intel(R) Xeon(R) Bronze 3106 @ 1.7 GHz | Supermicro X11SPW-TF rev. 1.02 | 16 GB | 500 GB | AVAGO 3108 MegaRaid | 2 | 4 |
| Tiger Box|1U8 | 1U | Intel(R) Xeon(R) E5-2609 @ 2.5Ghz | Supermicro X9SRW-F | 16GB DDR4-3200 ECC | 1 x 500GB HDD | AOC-S3108L-H8iR / LSI - SAS 9361-8I | 3 | 8 |
| Tiger Box|3U16 | 3U | Intel Xeon Bronze 3104 (6 cores) 1.7Ghz, 8.25M, s3647 | Supermicro X11SPL-F | 16GB DDR4-3200 ECC | 1 x 500GB HDD | AOC-S3108L-H8iR / LSI - SAS 9361-8I | 7 | 16 |
| Tiger Box|4U24 | 4U | Intel Xeon Bronze 3104 (6 cores) 1.7Ghz, 8.25M, s3647 | Supermicro X11SPL-F | 16GB DDR4-3200 ECC | 1 x 500GB HDD | AOC-S3108L-H8iR / LSI - SAS 9361-8I | 7 | 24 |
| Tiger Box|4U24DC | 4U | 2 x lntel CPU Xeon Silver 4208, 2.1GHz | Supermicro X11DPH-I | 32GB DDR4-3200 ECC | 1 x 500GB HDD | AOC-S3108L-H8iR / LSI - SAS 9361-8I | 7 | 24 |
| Tiger Exp|3U16 | 3U | N/A | N/A | N/A | N/A | N/A | N/A | 16 |
| Tiger Exp|4U24 | 4U | N/A | N/A | N/A | N/A | N/A | N/A | 24 |
| Tiger Serve|1U | 1U | Intel(R) Xeon(R) E5-2609 @ 2.5Ghz | Supermicro X9SRW-F | 16GB DDR4-3200 ECC | WD 500GB WD5000LPLX | N/A | 3 | N/A |
| Tiger Serve|2U (per node) | 2U | Intel Xeon E5-2609 v2/2.5Ghz | Supermicro X9DRT-F | 12Gb - 3x4Gb | WD 500GB WD5000LPLX | N/A | 2 | N/A |
In addition to installing, configuring and optimizing all of the above I/O cards, Tiger can also:
- Pre-install and configure APC PowerChute software for your Uninterrupted Power Supply (UPS).
- Pre-install and configure Qualstar drivers for tape library control.
- etc.
(1) Stream count measured in our lab using typical video editing application. Please use as ballpark figure. Tiger cannot guarantee you will get the exact same numbers in the field as results will vary based on your particular application, traffic pattern and network topology.
(2) All Fibre Channel and 10GbE optical connections include SFP+ of 10BASE LC-type. The 40GbE connection does not.
(3) Performance per port. These numbers represent read performance measured in our lab using practical test cases and Tiger Client driver. Actual performance may vary in the field based on your applications, motherboard, drivers, HBA, switch, protocol, etc. Also note that these numbers are also bound to the total performance capabilities of your storage unit.
(4) An iSCSI initiator must be ordered separately.
(5) Tiger Store|FCT Fibre Channel Target module must be ordered separately. Note that Tiger Store|FCT module is only available when ordering a Tiger appliance.
(6) All Tiger appliances come with dual, hot-swappable power supplies and it is possible to order additional system memory.
NOTE: Specifications are subject to change without notice.
